ONLY FOR
Product
performance
and features
-
Low water content of sludge: The water content can be reduced to about 60% by extrusion, and the water content can be as low as 50% if combined with the electrodialysis module. The elastic sealing body is pressure-resistant and has a long service life: the elastic sealing seal is used to directly contact and seal the traditional filter plate, and the sealing surface is uniformly and continuously stressed and not easy to spray mud.
-
The secondary pressing pressure is large: under the high pressure of the hydraulic cylinder (30kg pressure, the secondary pressing pressure of the ordinary frame machine does not exceed 16kg), the filter plates are close, the space between the filter plates continues to shrink, and the water is further squeezed out. The moisture content of the sludge is reduced to about 60%.
-

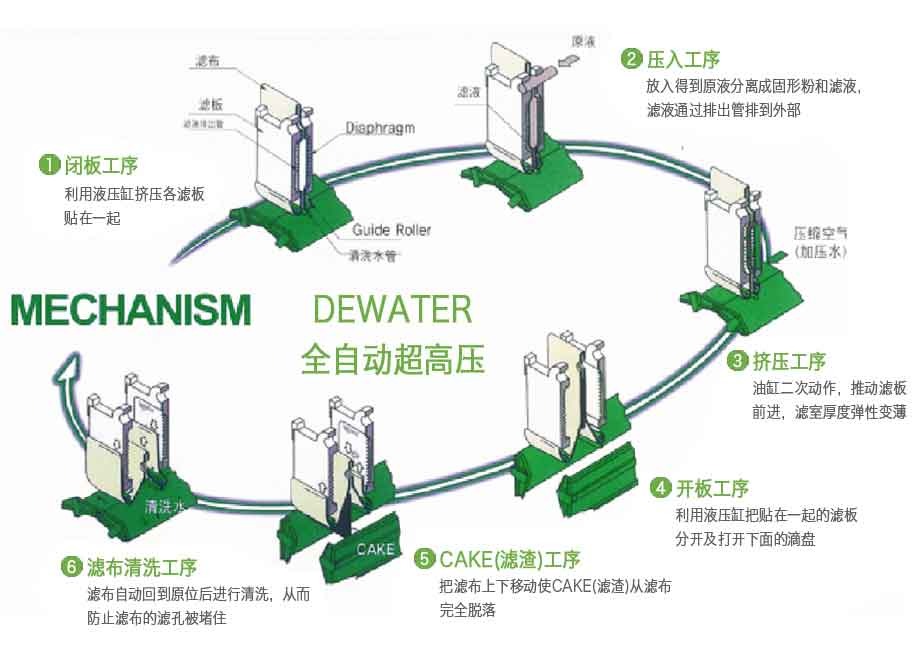

Fully automatic operation and high working efficiency: The working cycle of this equipment is 1-1.5h for a single batch, and the working efficiency is 2-3 times that of a diaphragm filter press. Open the plate once, automatically forcibly drop the mud, and synchronously clean the filter cloth: pull all the filter plates at one time, saving running time; rotating forcibly drop the mud, there will be no mud cake sticking to the filter cloth; clean the filter cloth immediately after the mud falls , Complete the cleaning within 2 minutes. It completely avoids manual mud shovel and can be truly fully automatic.
-
Low operating cost: do not need to add iron salt and lime, only need to add a small amount of PAM, the chemical cost is low, and the sludge can be used as resources. The overall power consumption is about 60% of the traditional frame machine.
-
Few ancillary equipment: This equipment only uses one hydraulic system and does not require additional pressurization equipment. The diaphragm filter press must be equipped with water tanks, air pressure pumps, squeezing water pumps, air compressors, air storage tanks and other squeezing auxiliary facilities.
ONLY FOR
Product
introduction
PRODUCT INTRODUCTION The ultra-high pressure plate and frame dewatering machine is a high-efficiency filter press and solid-liquid separation equipment independently developed by Shanghai Renchuang. It has greatly improved the traditional diaphragm filter press. It uses variable chamber press instead of diaphragm press. The main hydraulic cylinder is used to complete, without additional secondary pressing and pressurizing equipment and pressing medium, the pressure is higher (5-7Mpa); the mud cake is directly stressed and the working cycle is short (about 1-1.5h/batch), so The efficiency is higher (the water content of the sludge is below 60%), and the production efficiency is 2-3 times that of the traditional diaphragm filter press. It can be widely used in the deep dewatering of municipal sludge and river dredging.
